Kernel Methods

Introduction

The gradient descent update for the least mean squares looks like this:

\theta \leftarrow \theta + \alpha \sum_{i=1}^{n} \left(y^{(i)} - \theta^T x^{(i)}\right)x^{(i)}

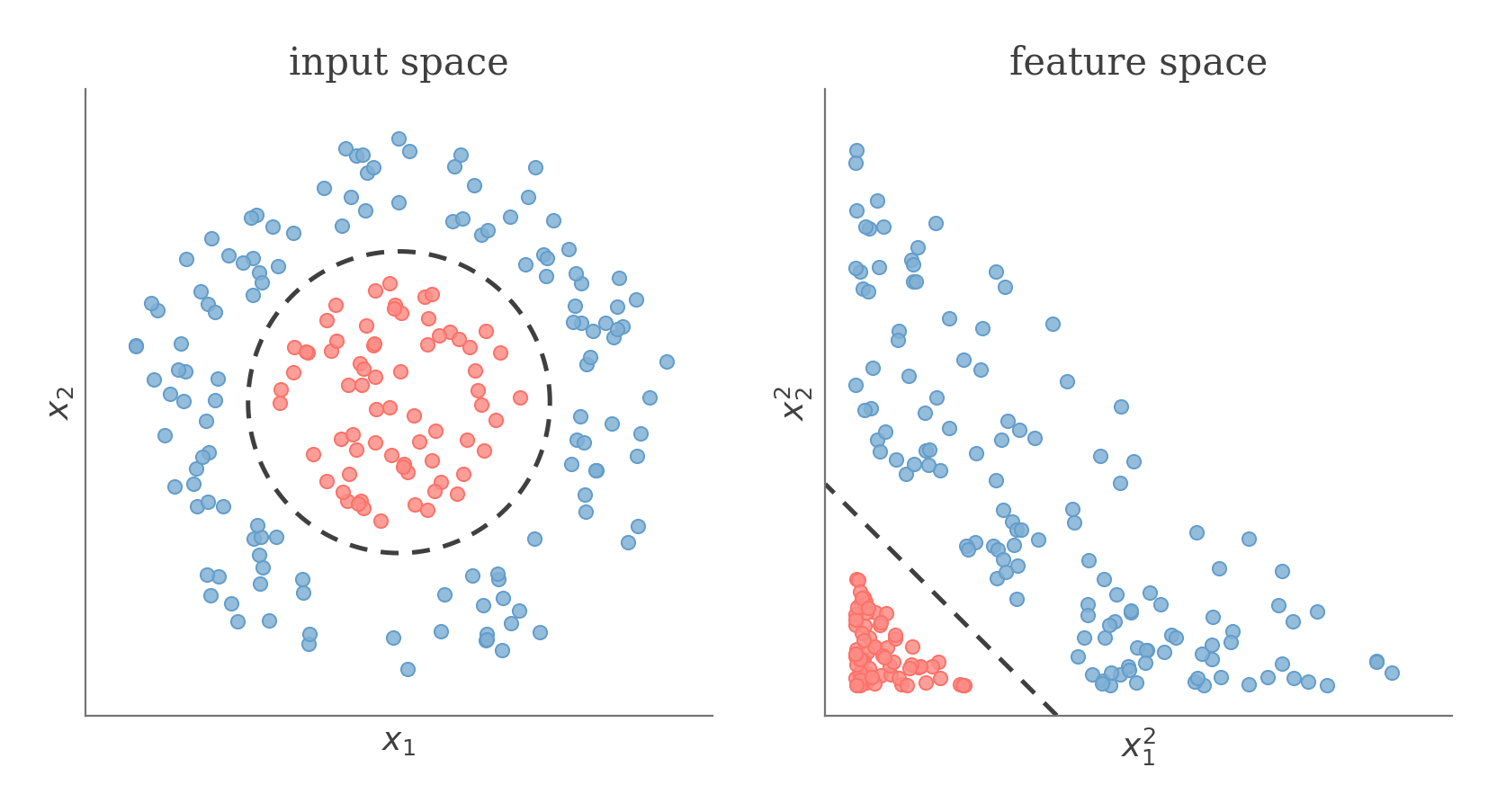

However, sometimes our data is not linearly separable. For this, we can use a feature mapping to transform the data into a higher-dimensional space, and then apply the gradient descent as follows:

\theta \leftarrow \theta + \alpha \sum_{i=1}^{n} \left(y^{(i)} - \theta^T \phi(x^{(i)})\right)\phi(x^{(i)})

However, this can become computationally expensive if the feature mapping is too complex. For example, if

\phi(x)

is a vector that contains all the monomials of

x

with degree

\leq 3

, then the dimension of our features are

d^3

where

d

is the dimension of

x

This would mean that

\theta

would also have

d^3

parameters and we will need to compute

d^3

gradient updates.

To fix this, we first assume that

\theta

can be represented as a linear combination of our training examples (or their feature mappings):

\theta = \sum_{i=1}^{n} \beta_i \phi(x^{(i)})

We can then rewrite the gradient descent update as follows:

\theta \leftarrow \theta + \alpha \sum_{i=1}^{n} \left(y^{(i)} - \theta^T \phi(x^{(i)})\right)\phi(x^{(i)})

\theta \leftarrow \sum_{i=1}^{n} \beta_i \phi(x^{(i)}) + \alpha \sum_{i=1}^{n} \left(y^{(i)} - \theta^T \phi(x^{(i)})\right)\phi(x^{(i)})

\theta \leftarrow \sum_{i=1}^{n} \left( \underbrace{\beta_i + \alpha \left( y^{(i)} - \theta^T \phi(x^{(i)}) \right)}_{\text{new } \beta_i} \right) \phi(x^{(i)})

With this, to fine the new

\theta

, we only need to compute the new

\beta_i

's for all of our training examples. And the new

\beta_i

's can be found using the following update:

\beta_i \leftarrow \beta_i + \alpha \left( y^{(i)} - \theta^T \phi(x^{(i)}) \right)

\beta_i \leftarrow \beta_i + \alpha \left( y^{(i)} - \left(\sum_{j=1}^{n} \beta_j \phi(x^{(j)})\right)^T \phi(x^{(i)}) \right)

\beta_i \leftarrow \beta_i + \alpha \left( y^{(i)} - \sum_{j=1}^{n} \beta_j \, \phi(x^{(j)})^T \phi(x^{(i)}) \right)

To avoid having to compute the dot products of the feature mappings for all

i, j

, on each iteration, we can precompute a kernel function that contains all the dot products before the training starts.

K(x^{(i)}, x^{(j)}) = \phi(x^{(i)})^T \phi(x^{(j)}) = \left\langle \phi(x^{(i)}), \phi(x^{(j)}) \right\rangle

It would seem that this is still computationally expensive if we have a lot of training examples since each dot product takes only

O(d^3)

operations. But in reality, a dot product can be broken down so that it takes

O(d)

operations.

See derivation

The update rule for

\beta_i

is now:

\beta_i \leftarrow \beta_i + \alpha \left( y^{(i)} - \sum_{j=1}^{n} \beta_j \, K(x^{(i)}, x^{(j)}) \right)

Similarly, for inference, we can predict the value of a new example

x

as follows:

\theta^T \phi(x) = \sum_{i=1}^{n} \beta_i K(x^{(i)}, x)

Validity of Kernels

A kernel

K(x, z)

is valid if there exists a feature mapping

\phi

such that

K(x, z) = \left\langle \phi(x), \phi(z) \right\rangle

One example of a valid kernel is the quadratic kernel.

K(x, z) = \left( x^T z + c \right)^2

. The feature mapping of this kernel is:

\phi(x) = \begin{bmatrix} x_1 x_1 \\ x_1 x_2 \\ x_1 x_3 \\ x_2 x_1 \\ x_2 x_2 \\ x_2 x_3 \\ x_3 x_1 \\ x_3 x_2 \\ x_3 x_3 \\ \sqrt{2c} x_1 \\ \sqrt{2c} x_2 \\ \sqrt{2c} x_3 \\ c \end{bmatrix}

See derivation

There is another, more formal way to check if a kernel is valid. This is by checking if the kernel satisfies the Mercer's condition.

Let

K

denote the kernel matrix of a kernel function

K(x, z)

. If

K(x, z)

is a valid kernel, then

K

must be a positive semidefinite matrix.

In other words, for any valid kernel matrix

K

, and any vector

z

, the following must hold:

z^T K z = \sum_{i} \sum_{j} z_i K_{ij} z_j \geq 0

See derivation
